WSB80 Immersion Blender
A rework of the Waring WSB Immersion blender that allows for swift, lightweight, and manageable kitchen skills
Target Audience: Chef Dean
The issues:
Weight
Moving and holding up such a heavy tool can become taking and tiring after long periods, causing pains and making for an unhappy working experience.
Ergonomics
Power and lock switch placement was said to be “awkward” making using the tool uncomfortable when operating, leaving the user not wanting to use the tool
Technology
The wiring that comes off the tool can become cumbersome when it comes to using it.
IDEATION
photo credits: Pinterest
Inspiration is taken from images helping form, ergonomics, and family

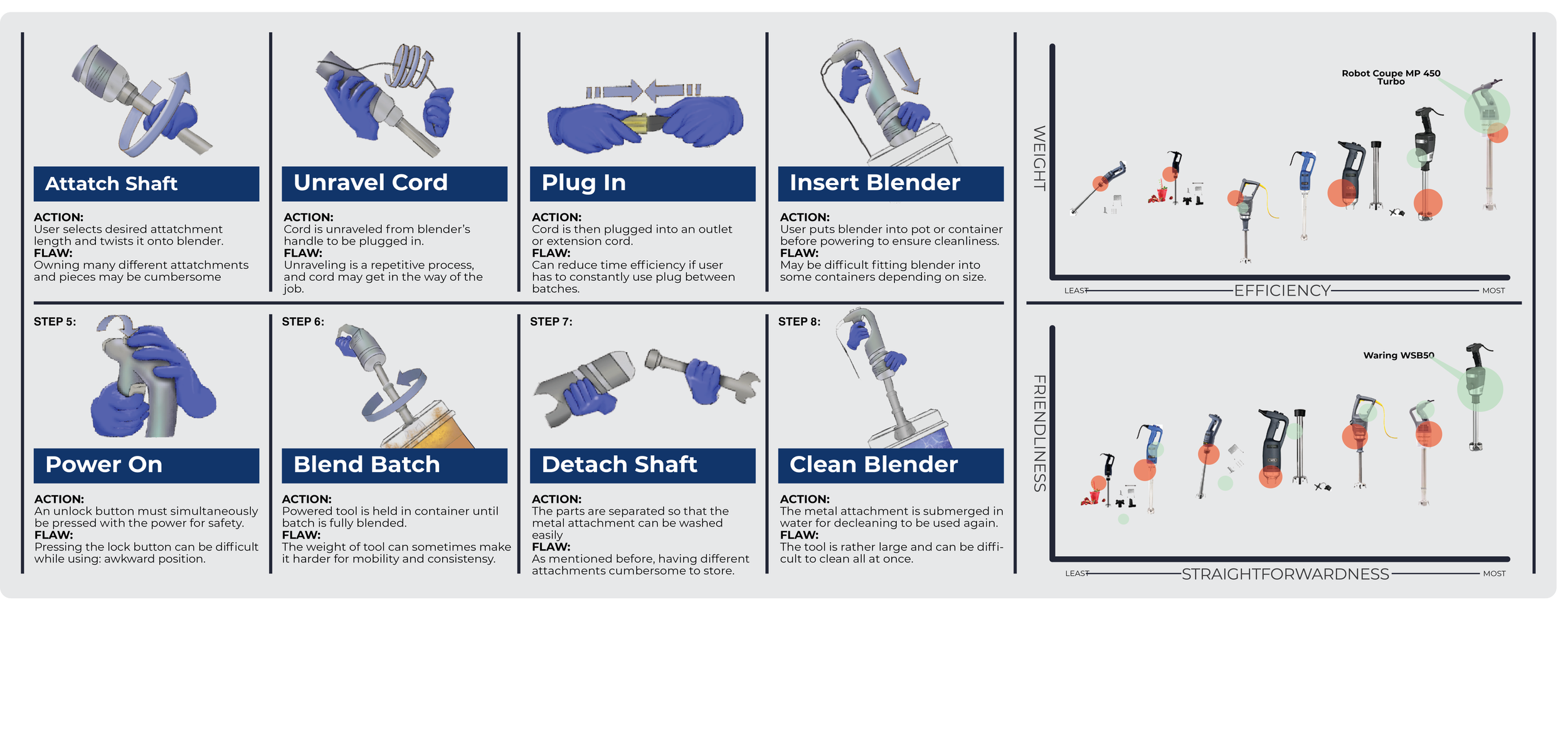

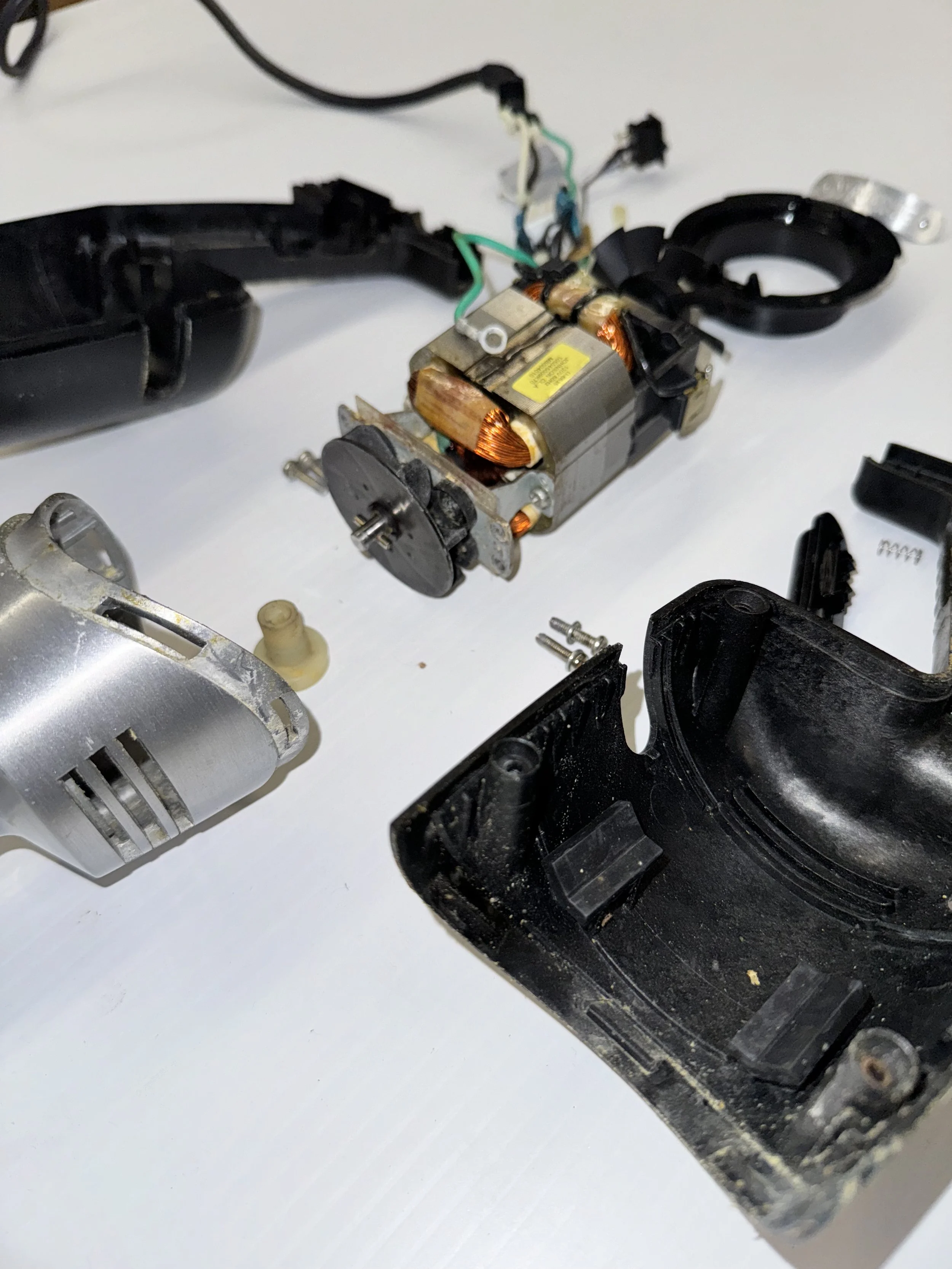

Use and process of tool is studied in order to identify flaws with the current tools in the market. This is done alongside a brand comparison to see what can be improved overall for the current best tool.
TASK AND BRAND ANALYSIS

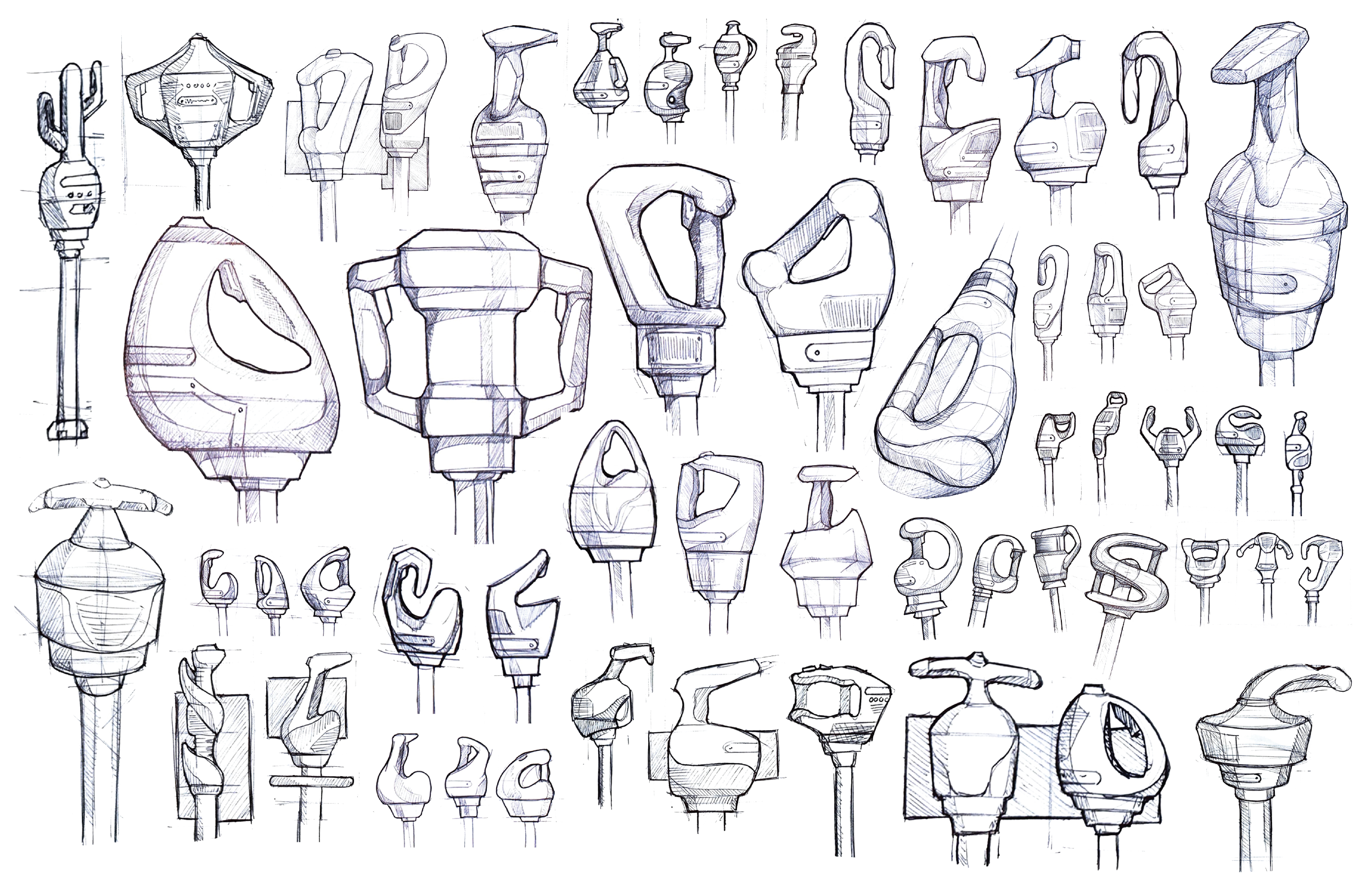

Various handle formations are sketched in order to see which one best fits brand language, with some formations using either one hand or both.
SKETCHING
MODELING

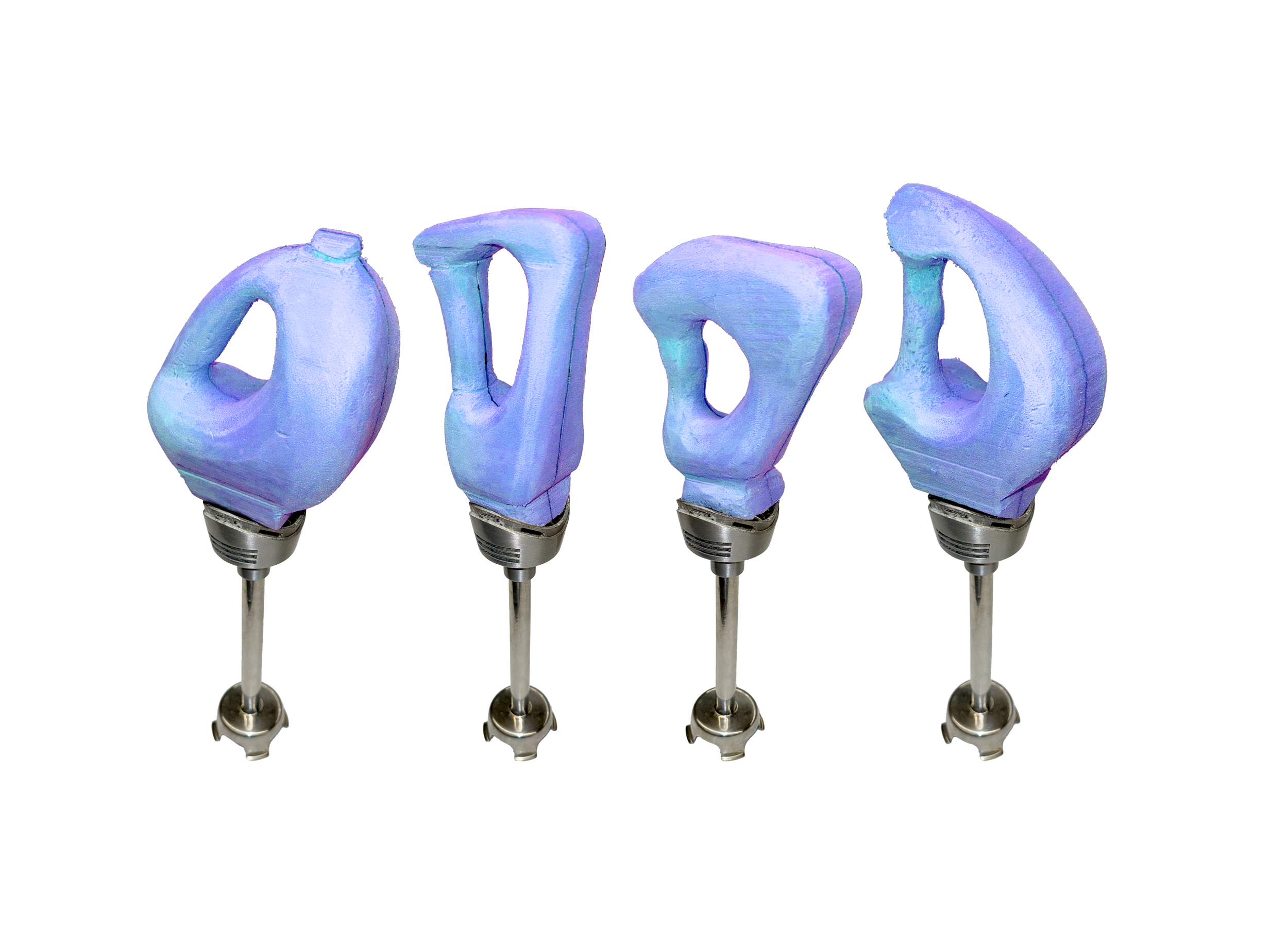

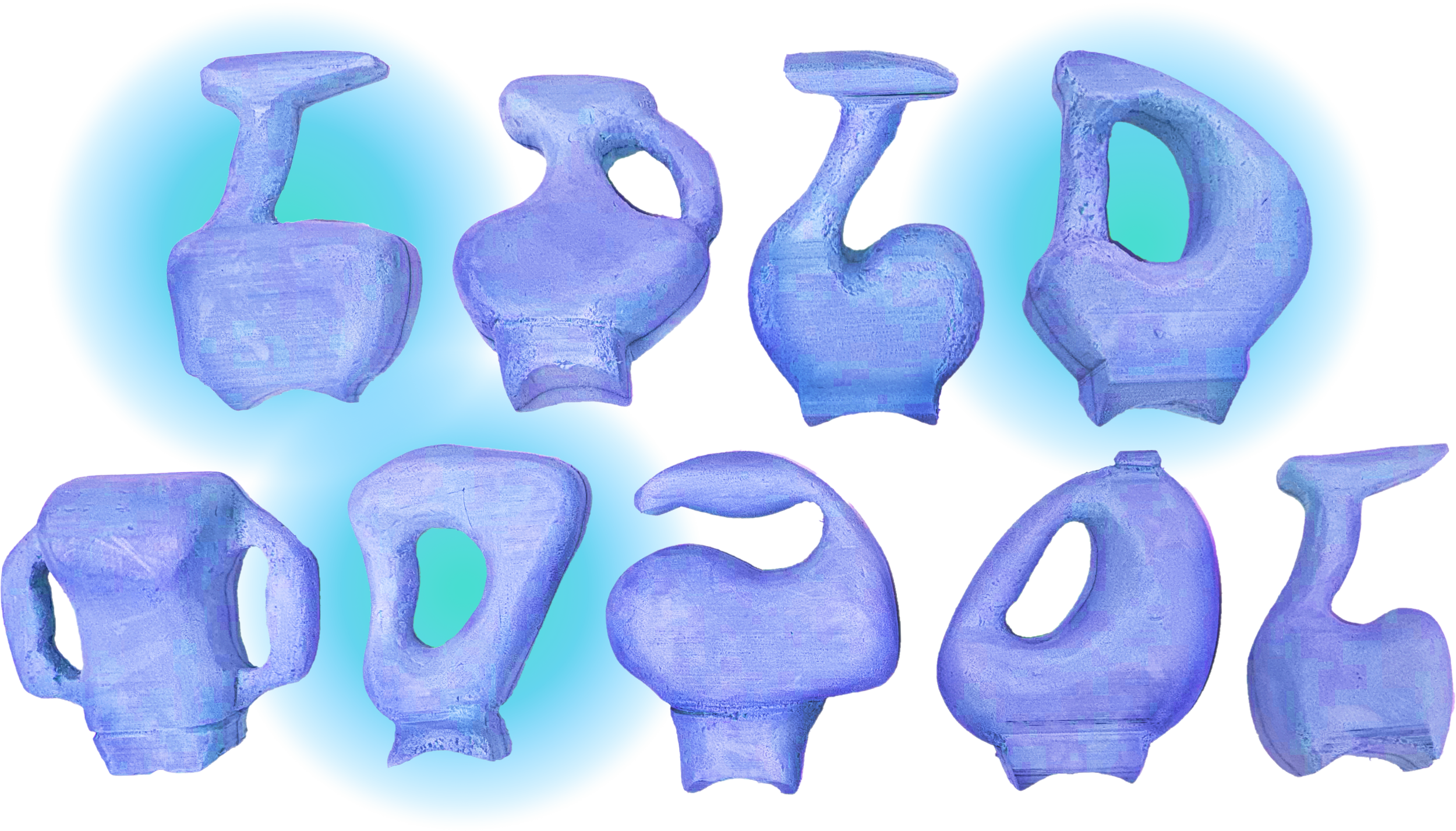

Low fidelity models are created from foam blocks to get a rough sense of ergonomics and family of form

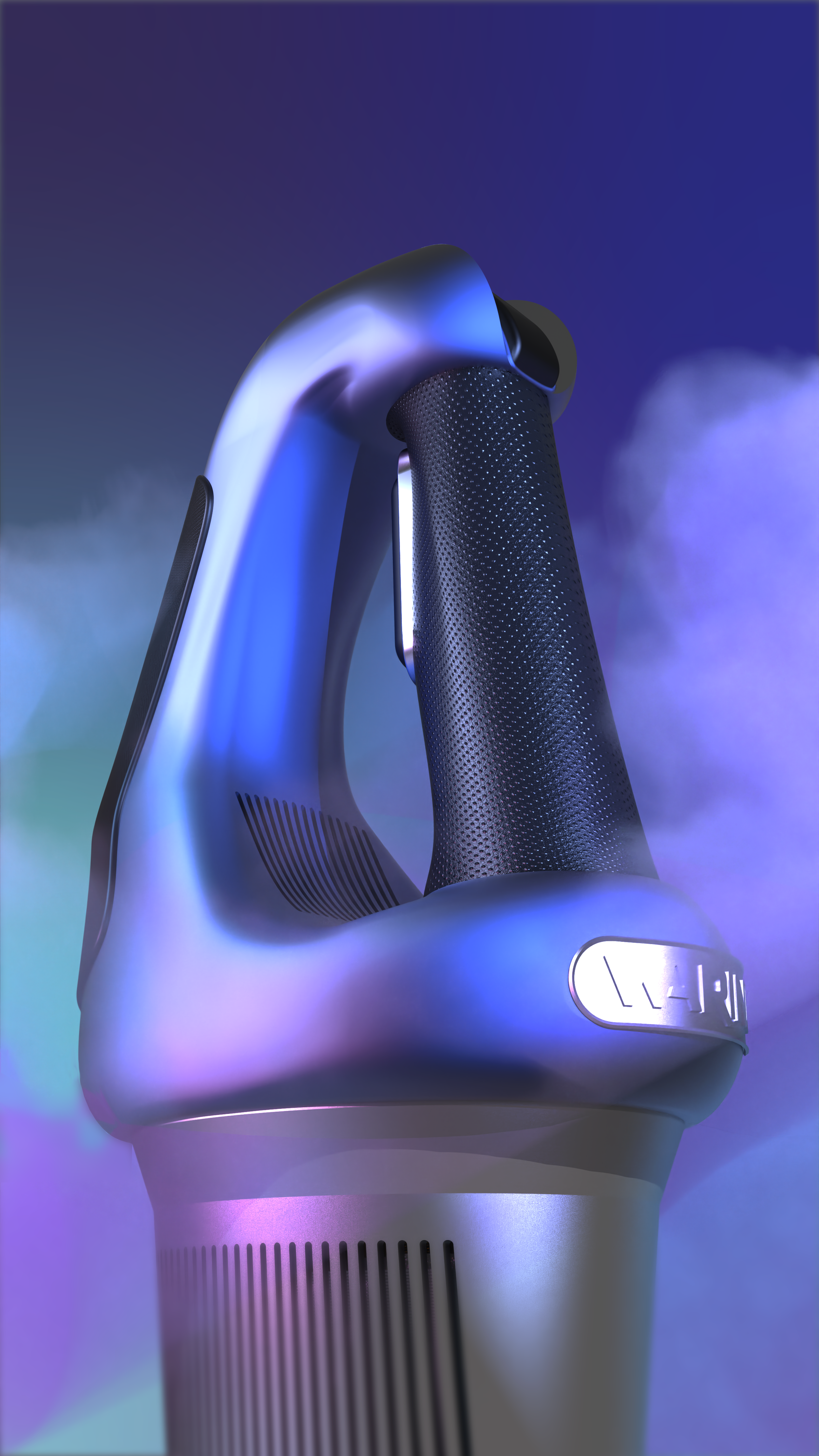

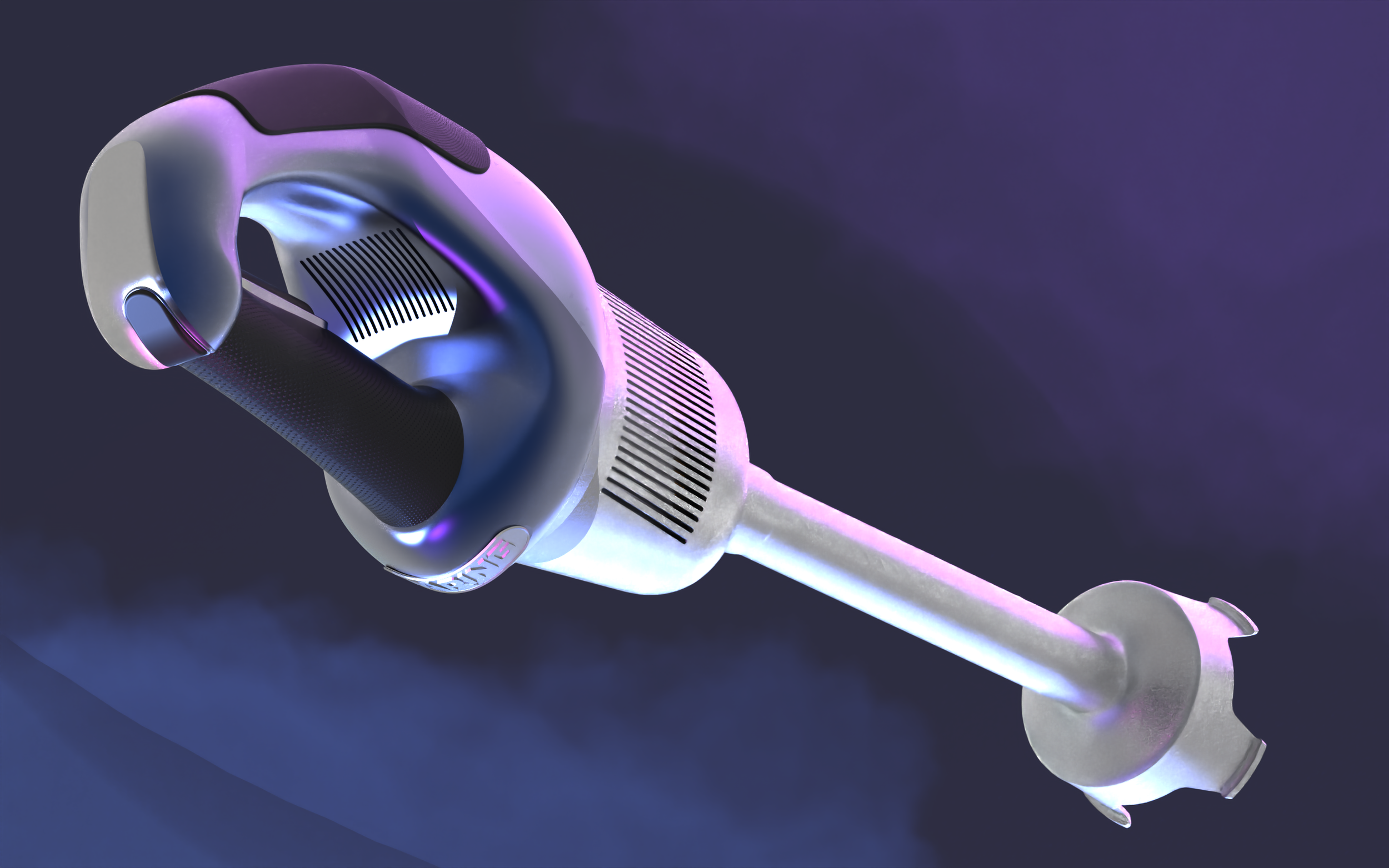

3D MODELS

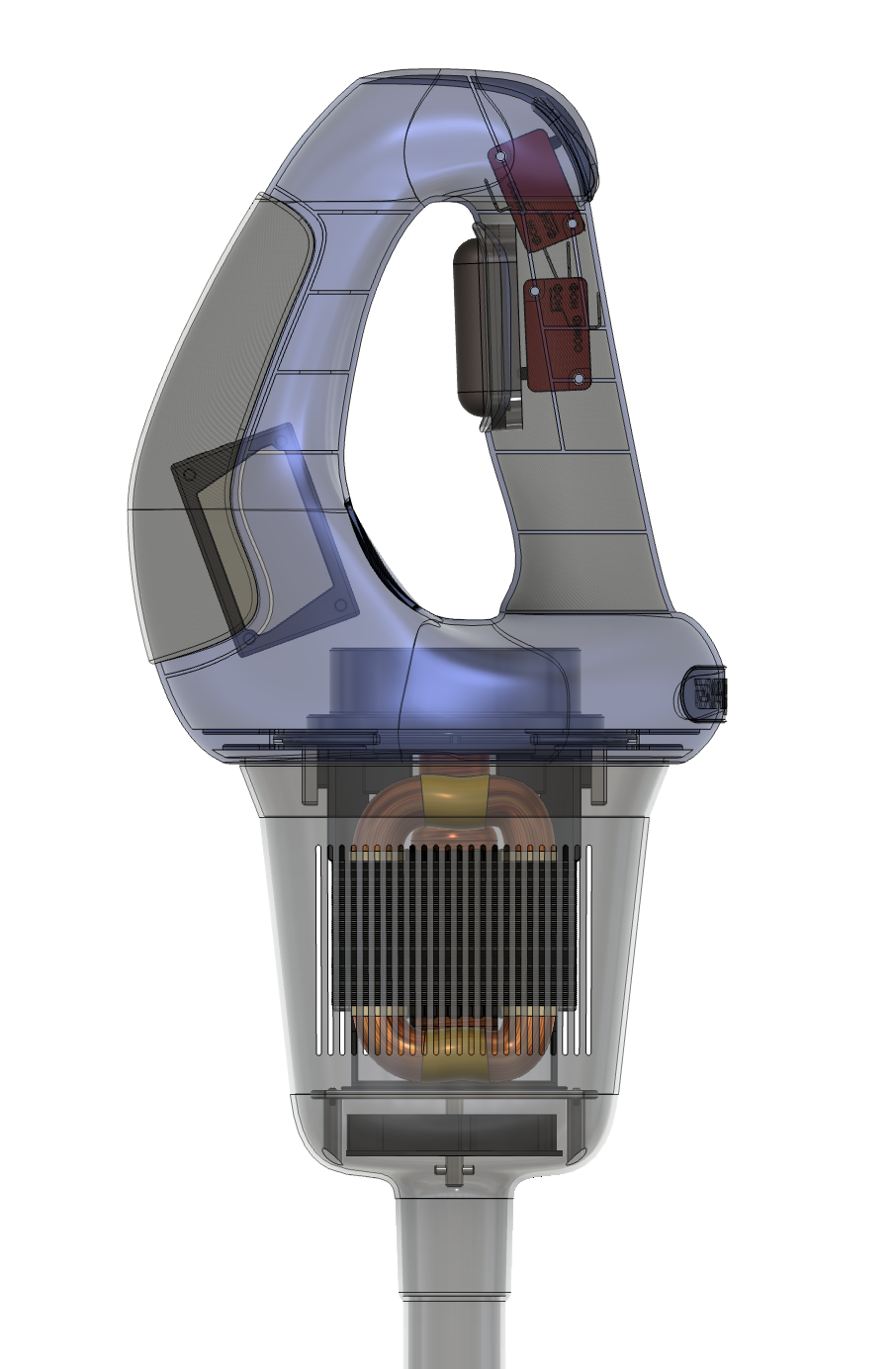

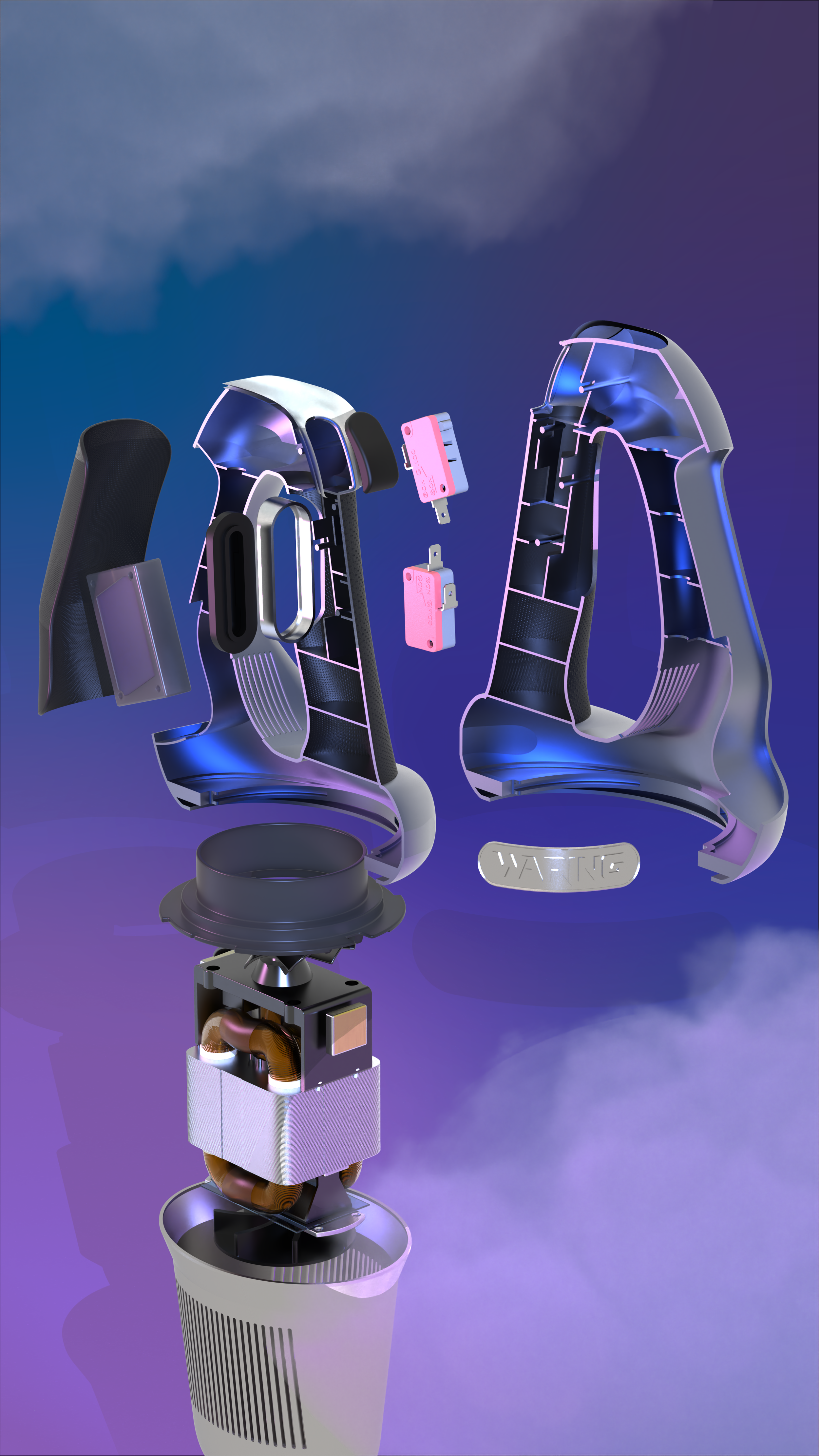

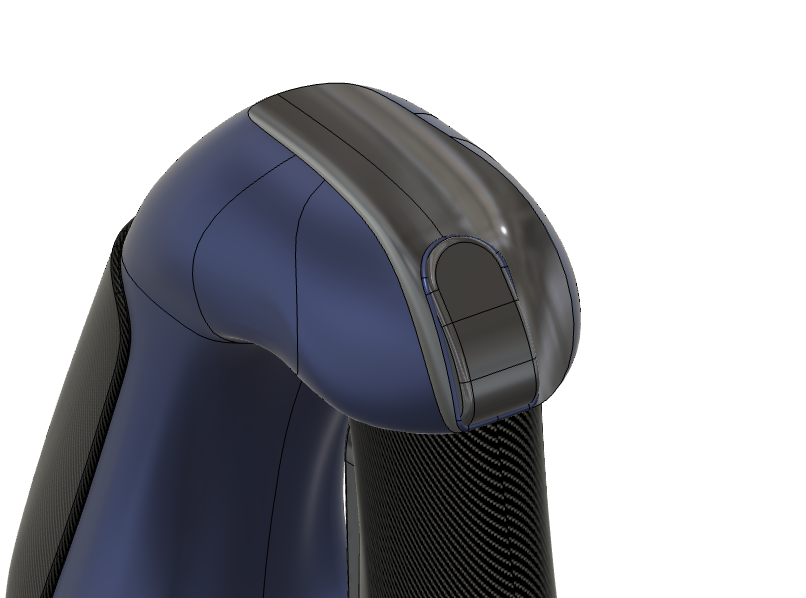

Physical models are then taken into consideration through Fusion360 Modeling, in order to move to the next step.

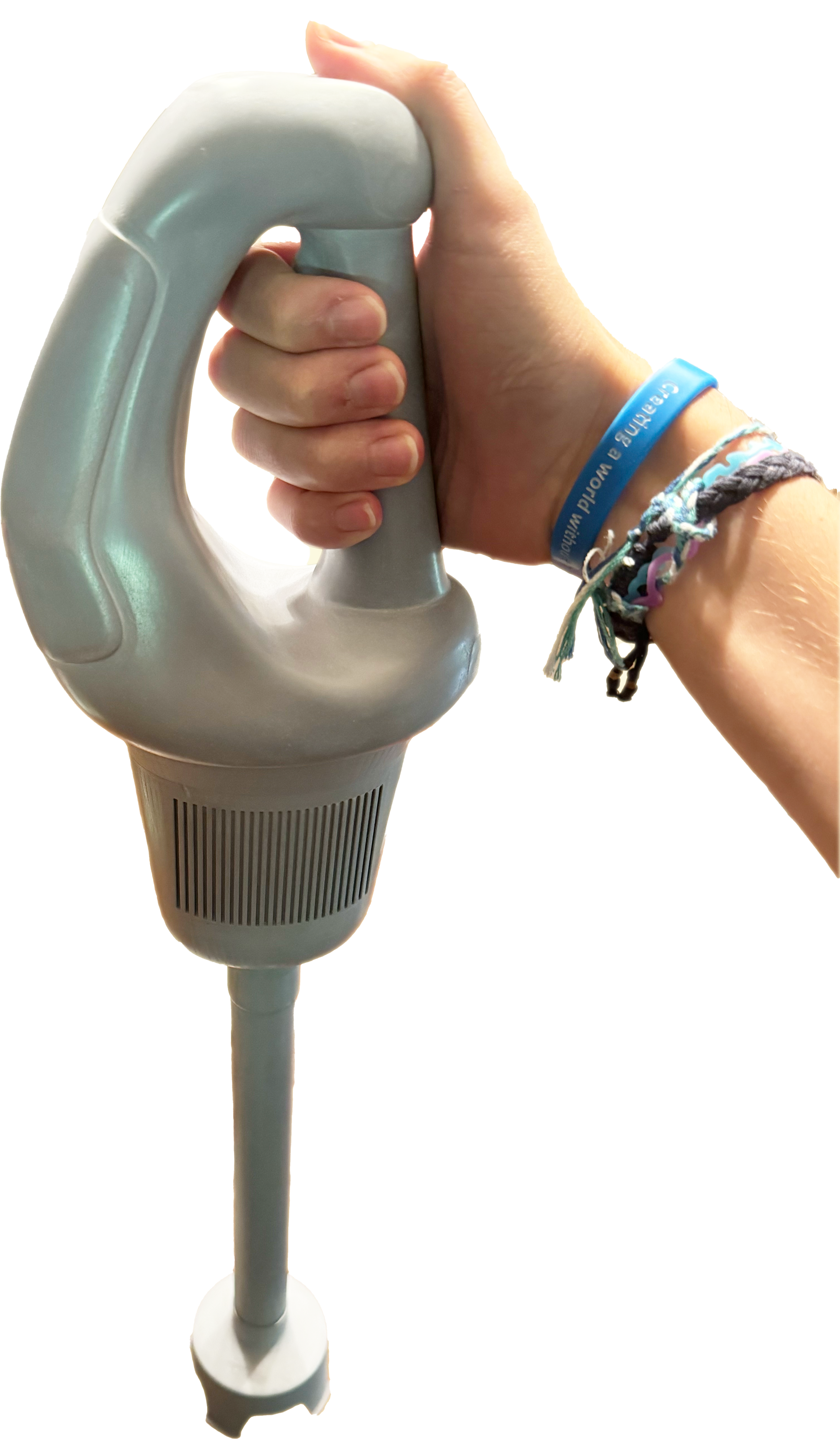

FINAL PHYSICAL MODEL

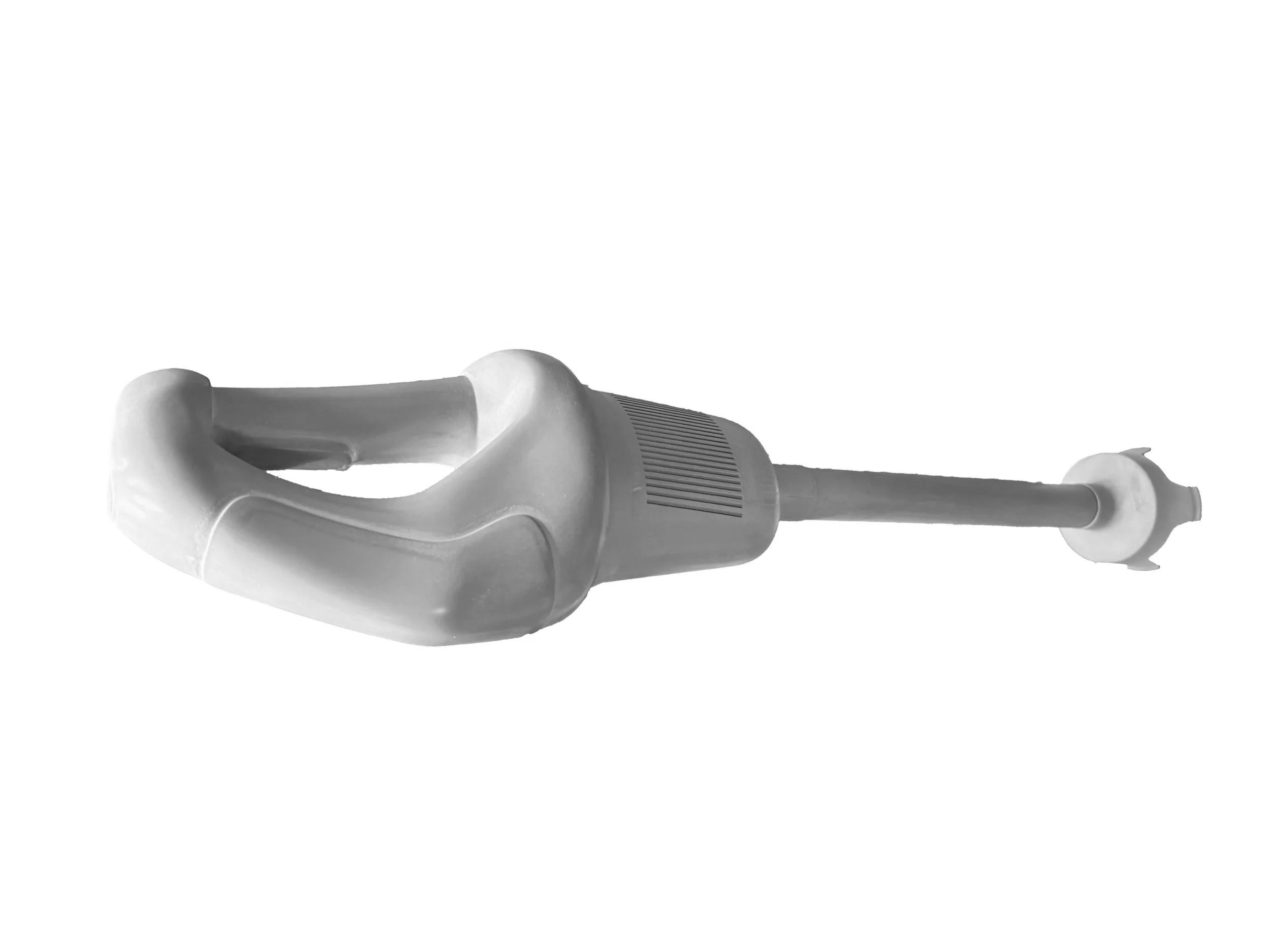

Higher density foam has been cut by a CNC machine based off of Fusion360 files. These cut pieces are all glued together, sprayed with primer, and sanded with a fine grit to a glossy finish.
